Ceramics Lining Pipe&Elbow
The Challenge sprit and valued investment for customer satisfaction.

Ceramics Lining Pipe & Elbow

CELINER standard

With excellent thermal, corrosion, abrasion resistance

There are large variety of pipes to transfer powder depending on using facilities and working conditions. However, the bad of it is that friction produced by prompt transportation of powder accelerates abrasion on the inside of pipes.
The inside of our "Celiner" is processed with special ceramics material: "lining", this lining treatment takes excellent effect in the intensification of abrasion resistance and extension of a pipe's life span. These effects help prevent a lowering of productivity and operation cease by frequent replacement of pipes.

In addition, our "Celiner" is the most proper pipe to transfer materials that requires thermal, corrosion, and abrasion resistance during transportation.

Ceramics Lining Pipe & ElbowSPEC

Alumina contents(%)   96.0
Color   White
Specific gravity(g/㎤)   3.70
Young modulus(GPa ) 320
Flexural strength(Kg/mm2) 32
Fracture toughness(MPa m1/2)   3.0
Hardness(Hv)   1,500
Coef. of Thermal expansion.(×10-6/℃ )   7.5

Product Properties

Our "CELINER" is processed with special ceramics material inside with a view of the transportation of powder, waste liquid, gas, etc. We are very proud of its excellence in the thermal resistance, abrasion resistance and life span. "CELINER" has the following superiorities.

  • - Excellent thermal resistance and abrasion resistance by dense?ceramic material processing
  • - Distinguished adhesive strength by high-temperature bonding agent
  • - Remarkable corrosion resistance against waste liquid, gas, etc
  • - No substance intermixed by abrasion during transportation
  • - 10~20 times longer life span than products processed with SS, SUS, etc
  • - Prevention of operation cease and low productivity caused by?frequent replacement of pipes and elbows

purpose

“CELINER" is in use for transportation of powder in the lime steam power plant, glass industry, iron mill, etc. Used parts are as follows

  • - Transportation by air: lime, cokes, cement, corn, sintered minerals, etc
  • - Liquid transportation: furnace hand-printed slurry, reclaim earth?and sand, waste liquid, etc

Business Guide

Business Address Tel Fax
Kimhae Factory 26-29, Sangdong-ro 375beon-gil, Sangdong-myeon, Gimhae-si, Gyeongsangnam-do 055-323-6589 55-323-6117

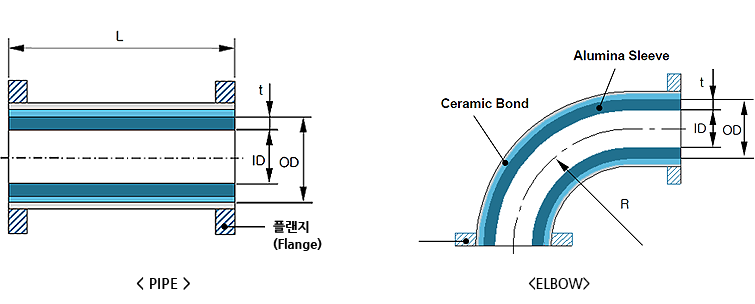

PIPE SPEC

SPEC Ceramics Size Pipe Size
ID OD t KS SPEC L
D 50 E
 20 35 7.5 50 A
 order spec
D 65 E
 30 48 9 65 A
D 80 E
 40 60 10 80 A
D 90 E
 50 70 10 90 A
D 100 E
 60 80 10 100 A

ELBOW SPEC

SPEC Ceramics Size Pipe Size
ID OD t KS SPEC R & Elbow Angle
D 50 E
 20 35 7.5 50 A
 R = 360
(order )
Elbow Elbow Angle :
60˚, 65˚, 70˚
80˚, 85˚, 90˚
D 65 E
 30 48 9 65 A
D 80 E
 40 60 10 80 A
D 90 E
 50 70 10 90 A
D 100 E
 60 80 10 100 A
